samsung j700f phone restrat probleam
im try emmc repair done but mobile no power onnnn

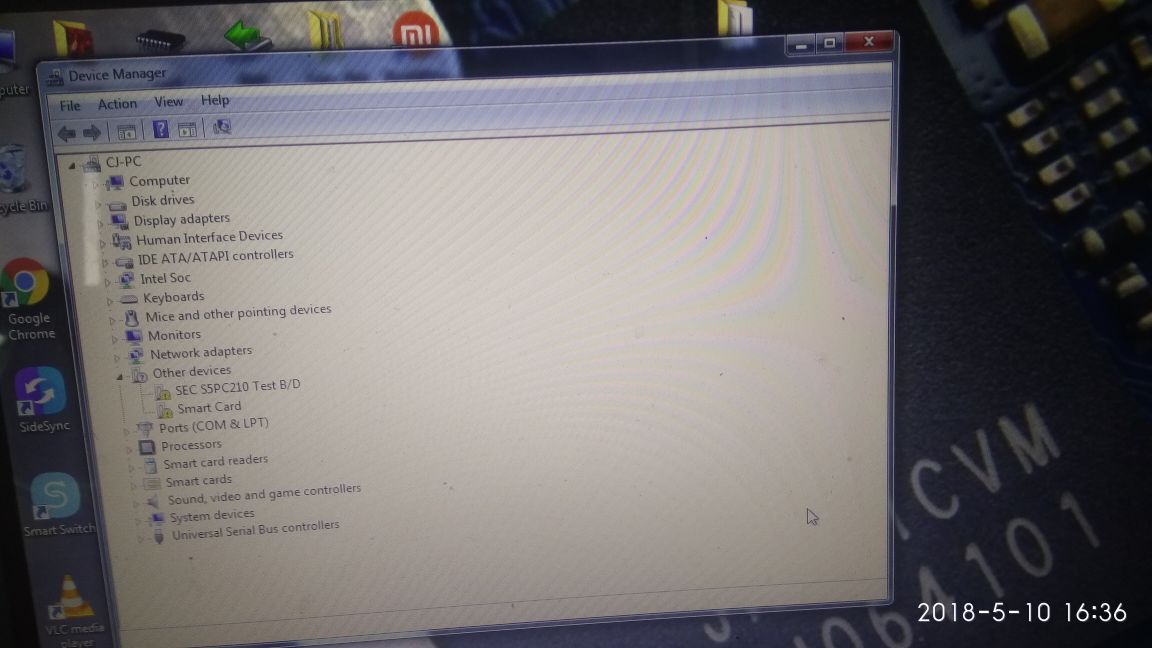

connct usb showing (sec s5pc210 test bt)
how do sholve
my log
Connection status: EHCI:HUB:HUB:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8839-7065
Boot version: 1.04, FW version: 1.11 (Dec 6 2017 17:13:32)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x11 (Toshiba)
Product name: 400073 (0x343030303733), rev: 0x00, serial number: 0x867011D4
Manufacturing date: Sep 2015
CID: 11010034 30303037 33008670 11D492AA
CSD: D07E0032 0F5903FF FFFFFFE7 8A4000D0
EXT_CSD revision: 1.7 (MMC v5.0, v5.01)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 14.68 GiB(15,758,000,128 bytes)
Cache size: 4 MiB
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning completed
Boot configuration protection: 0x00
Boot bus conditions: 0x01
Bus width: x4 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
User area write protection: 0x50
Password protection features: enabled
Power-on write protection: possible
Permanent write protection: not possible
Lock status: not locked
ANDROID ROM info:
platform: exynos5, cpu abi: armeabi-v7a
manufacturer: samsung
board: universal7580, name: j7eltexx
brand: samsung, model: SM-J700F
build id: LMY48B, version: 5.1.1 Lollipop (LMY48B.J700FXXU1AOG9)
build description: j7eltexx-user 5.1.1 LMY48B J700FXXU1AOG9 release-keys
